Panel Primary Efficiency Air Filtering

FOB Price:

US 3-20 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200000 Set/Sets per Year

Port:

Dalian/Dandong

Place of Origin:

Liaoning, China (Mainland)

Payment Terms:

T/T

Brand:

TianHao

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: TianHao

Model Number: BV

Place of Origin: Liaoning, China (Mainland)

Packaging & Delivery

Packaging Details: Panel Primary Efficiency Air Filtering: Plastic bags or paper boxes.
Delivery Detail: Shipped in 7 days after payment

Specifications

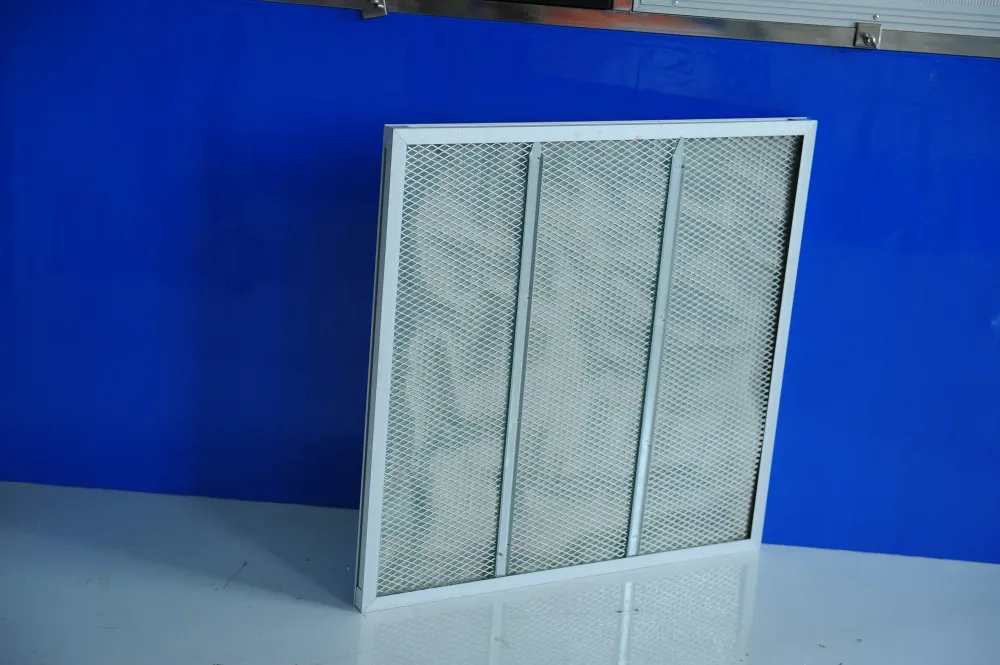

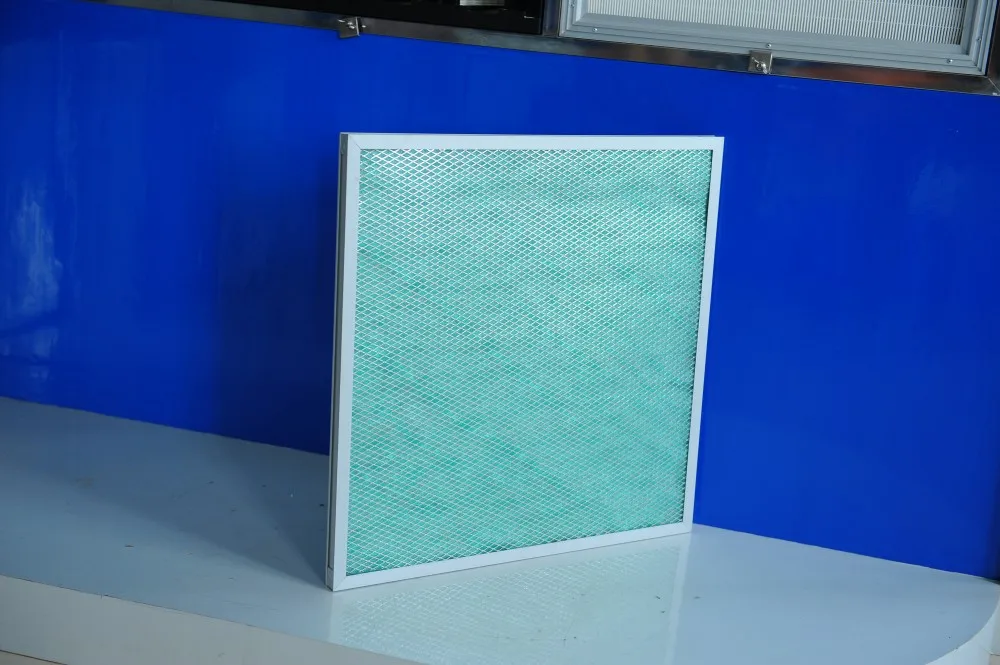

Detail Pictures

Introduction

Panel Primary Efficiency Air Filtering produced by TianHao Company learns from foreign advanced technology. BV type glass fiber plate filter made of this material has features of high temperature resistance, high efficiency, low resistance, light weight, sound deadening and anti-corrosion. It overthrows traditional glass spun silk's shortness of easy hair removal and dust leakage. Filter material can be made into panel type and pleat type. It's the ideal filter for modern hot-air drying room and high temperature environment. It also can be used as ventilation filter of painting equipment which can efficiently intercept mist and realize environmental production.

Specification Table of Panel Primary Efficiency Air Filtering

*Model*	Wind speed (m/s)	Thickness (mm)	*Resistance(Pa)*		Dust Holding (g/m²)	Efficiency (%)	Operating temperature (°C)
*Model*	Wind speed (m/s)	Thickness (mm)	*Initial Resistance*	*Final Resistance*	Dust Holding (g/m²)	Efficiency (%)	Operating temperature (°C)
*BV/G3*	2	14	30	*120*	*500*	75	*300*
*BV/G4-1*	2	20	40	*150*	*850*	85	*300*
*BV/G4-2*	2	*35-50*	8	30	*600*	85	*150*

Production

Package and Delivery

Application

Partners

Exihibit Room

Quality Control

Corporate Culture

More Surprises

Dandong TianHao Clarification Material Co., Ltd. is located on the side of the beautiful Yalu River of China. We are a professional enterprise mainly produces various efficiency levels of non-woven filter material and high efficiency filters. At present, our company can produce filtration products and relative equipments with dozens of models and hundreds of specification. Many products filled the domestic blanks, among which, the DE series filter material with fiber layer of graded density and large dust holding has won Identification of the national scientific research and Science and Technology Progress Award with its unique stepped filtration method.
Guided on science and technology, based on high quality and serve for society is the purpose of survival and development of TianHao Company. TianHao company has established long-term technical cooperation with Tsinghua university, Beijing Institute of Nuclear Engineering and Northeastern University. The Peoples Republic of China Machinery Industry Standard Non-woven adhesive fiber layer filter for gas purification which has been promulgated on 2006 was jointly drafted by our company and Northeastern University.
TianHao company has passed ISO 9001:2008 and established perfect quality control system based on this international standard. Now our company has large filter media production lines bag filter production line and HEPA production line. At present, the variety and technical content of the filter material and filters we produced are all in a leading position. The technical performance of some products has exceeded similar imported products. Meanwhile, TianHao Company can make edible mushrooms project, clean projects of electronics and pharmacy and air compressor air inflow filter project of petrochemical industry.
TianHao Company has advanced filtration testing equipment. According to customers requirements and applications, we can use varieties of particles and methods to test, such as weight method, particle sizing and counting method, sodium flame method, MPPS method and DOP/DOS method.
TianHao Company would like to provide you high quality service with sincerity and super technology.
